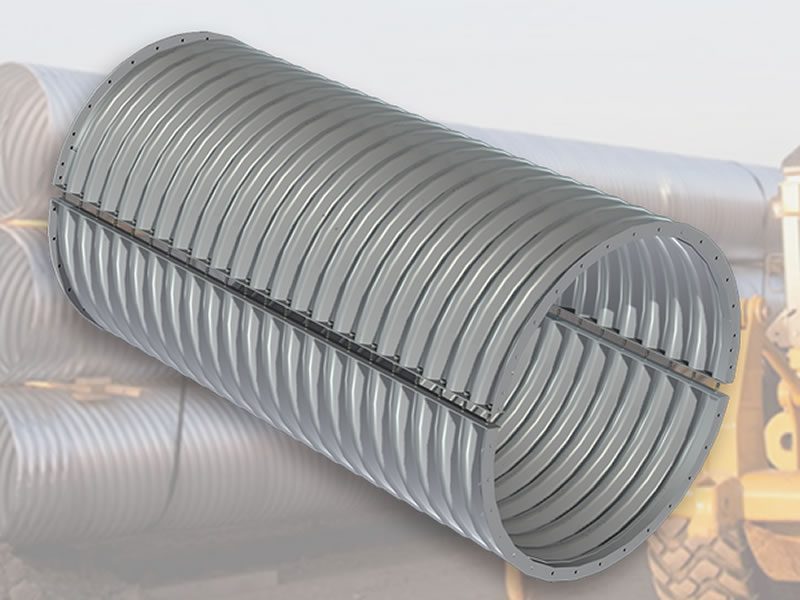

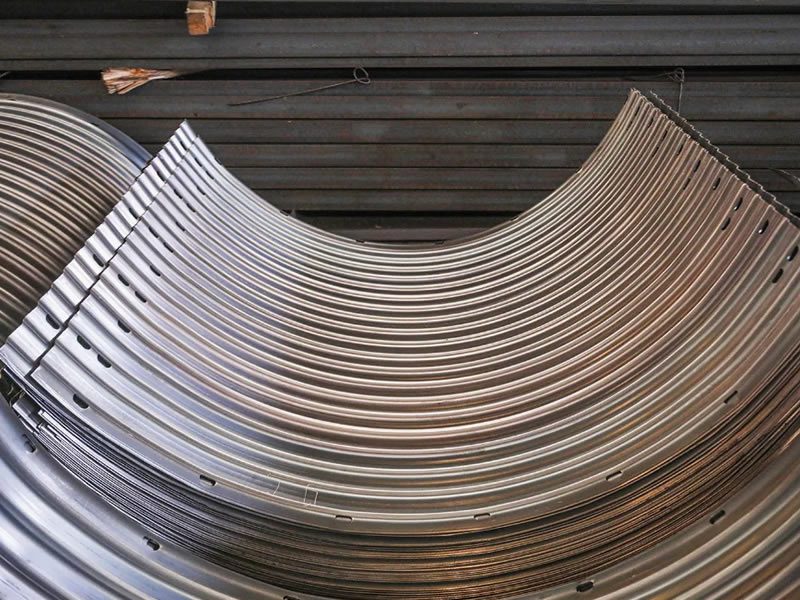

Two Plates Assembly Corrugated Steel Pipe Culverts are a type of durable and corrosion-resistant pipe used for various civil engineering and infrastructure applications. These culverts are constructed by bolting two half-round corrugated steel plates together to form a robust and round pipe. The modular design makes it easy to assemble and transport, especially for smaller diameter pipes, making them ideal for both domestic and international shipping.
SPECIFICATION
Material: Steel Plate Material Q235, SS400, or as per customer requirements.
Thickness of Steel Plate: Range 1.5mm to 8mm.Pipe Diameter: Range 400mm to 9000mm.
Types of Corrugation: 68mm × 13mm, 125mm × 25mm, 150mm × 50mm, 200mm × 55mm, 300mm × 110mm, 380mm × 140mm, 400mm × 150mm
Depth of Fill: Range1.5m to 60m.
Anti-Corrosion Treatment:
- Hot-Dip Galvanizing: ≥84μm (610g/m²) for enhanced corrosion resistance.
- Secondary Anti-Corrosion: Asphalt (bitumen) coating or epoxy resin coating as an optional treatment.
Expected Life: ≥100 years with proper maintenance.
Applicable Standards: JTT 791-2010, AASHTO M36
Features:
Assembly Methods:

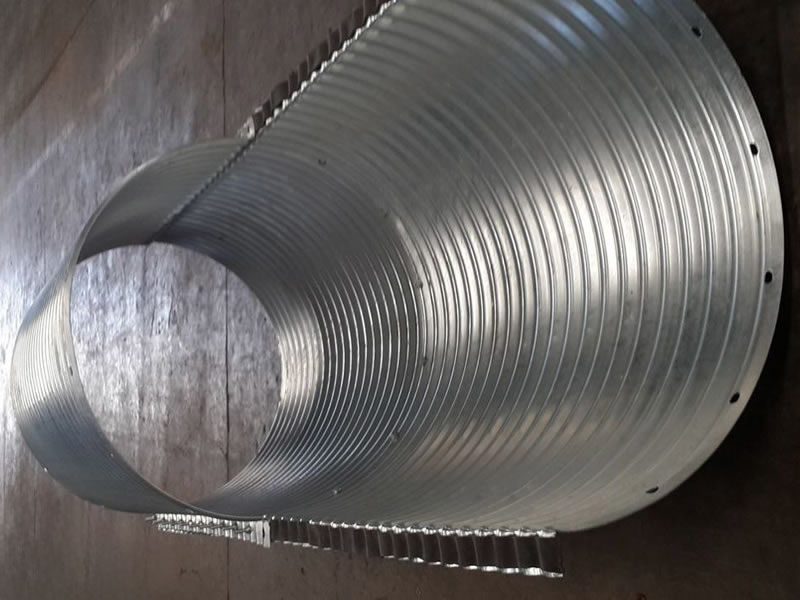

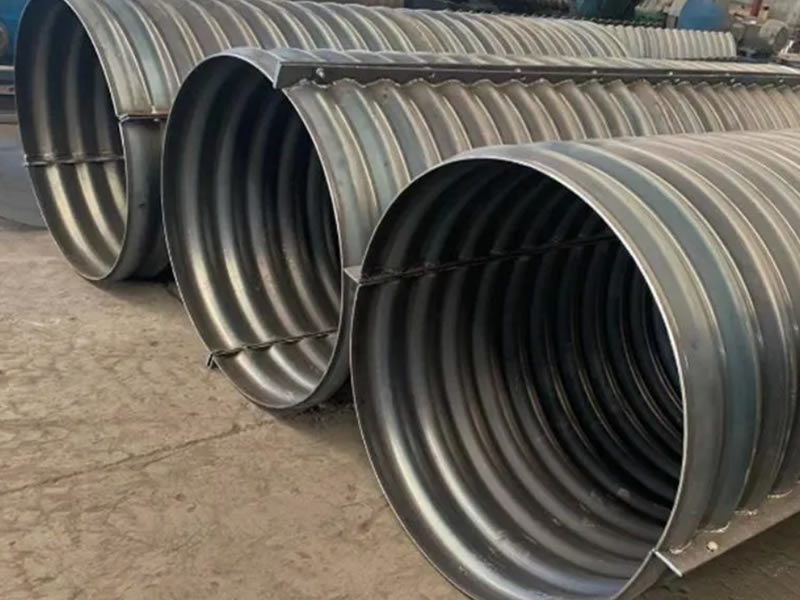

- Flanged Nestable Corrugated Steel Pipe: Features flanged edges for easy alignment and bolting, facilitating assembly and transportation.
- Overlapped Corrugated Steel Pipe: Plates are overlapped during assembly, enhancing joint strength and minimizing potential leakage.
Benefits
- Strength and Durability: The steel construction provides a long-lasting solution that can handle high-pressure conditions and resist corrosion.

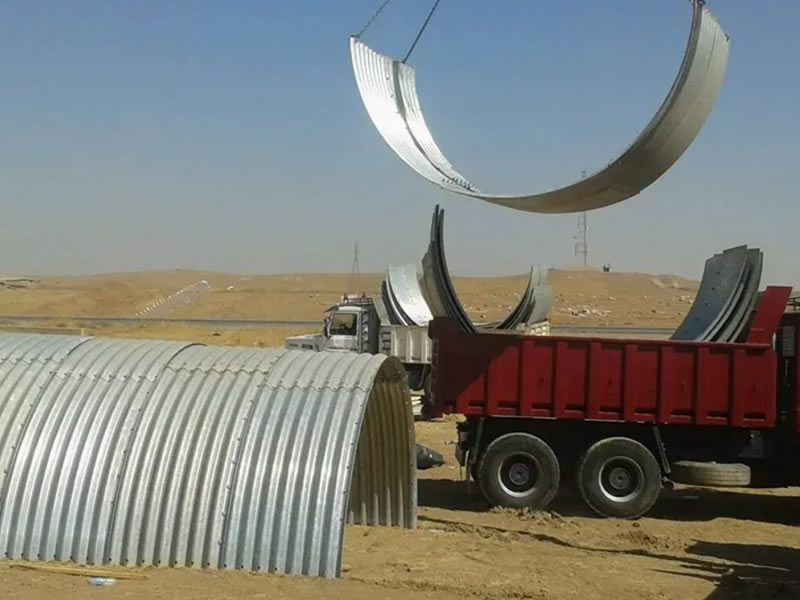

- Modular Design: The two-plate assembly method allows for flexibility and ease of installation, even in remote or difficult-to-access locations.
- Cost-Effective: These culverts offer a cost-efficient alternative to traditional concrete and other culvert materials, reducing both material and labor costs.

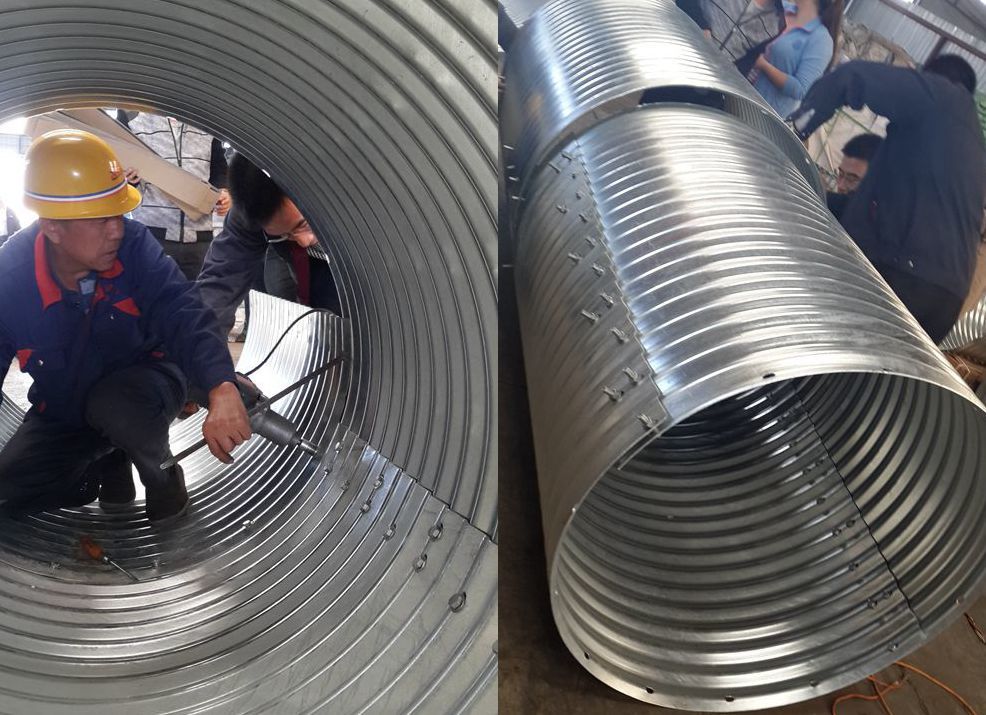

- Quick Installation: The bolt-together design allows for faster assembly and reduces the overall project timeline.
Applications:
- Culverts & Stormwater Management: Ideal for road crossings, drainage systems, and stormwater management, helping direct water efficiently and prevent flooding.
- Sewer Systems & Infrastructure: Reliable solution for sewer systems and other infrastructure projects, ensuring a long-lasting performance.
