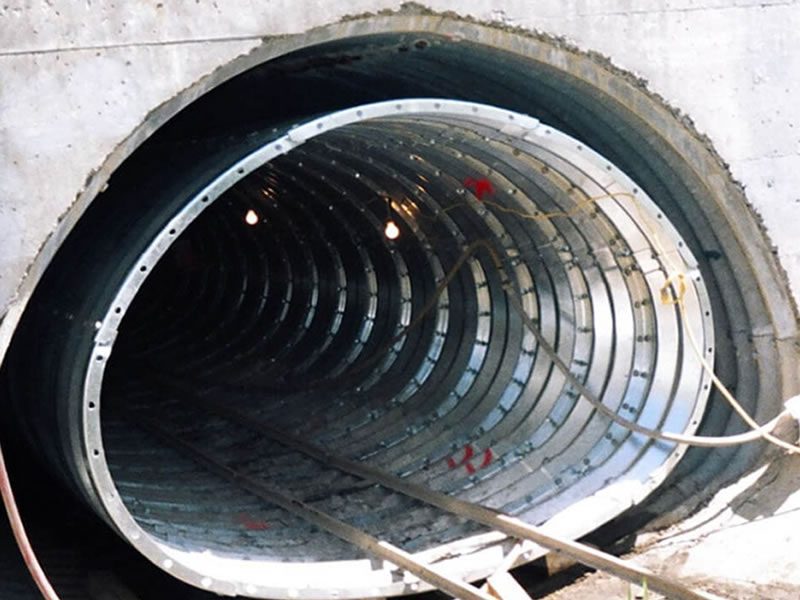

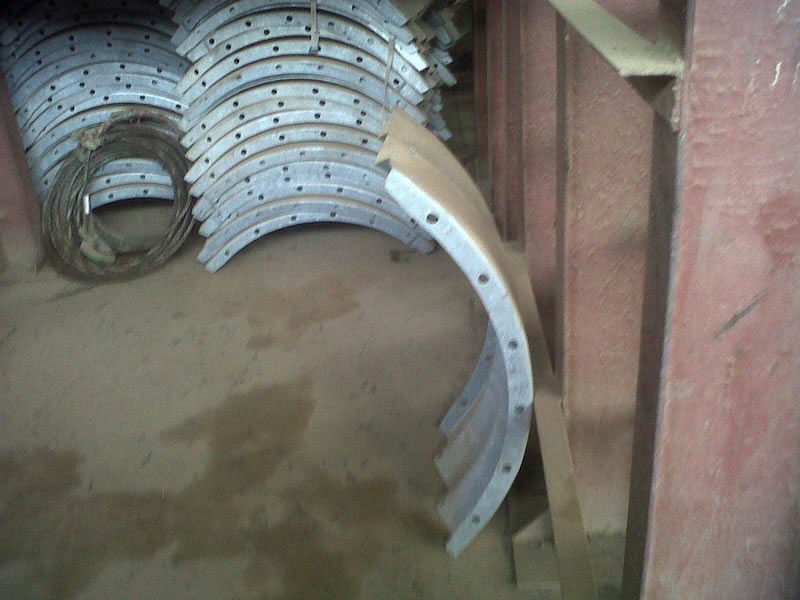

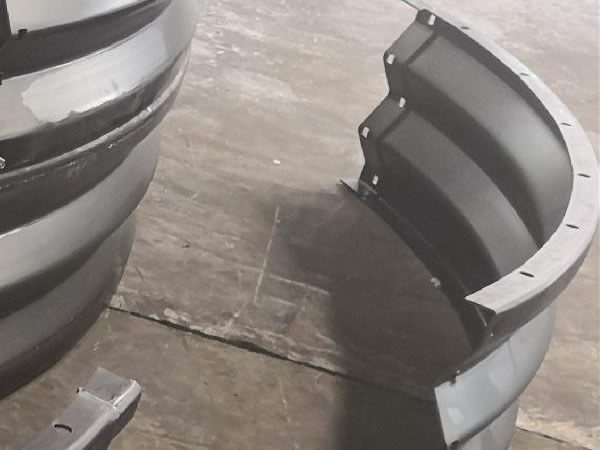

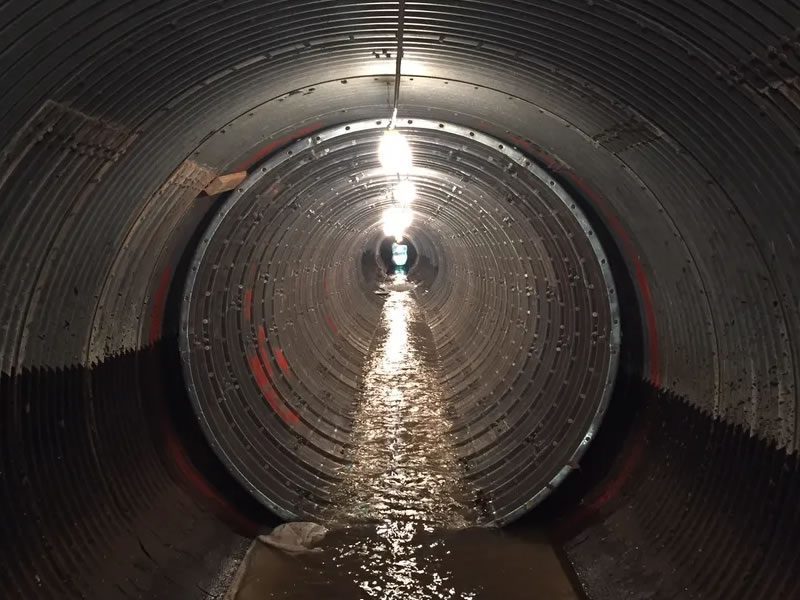

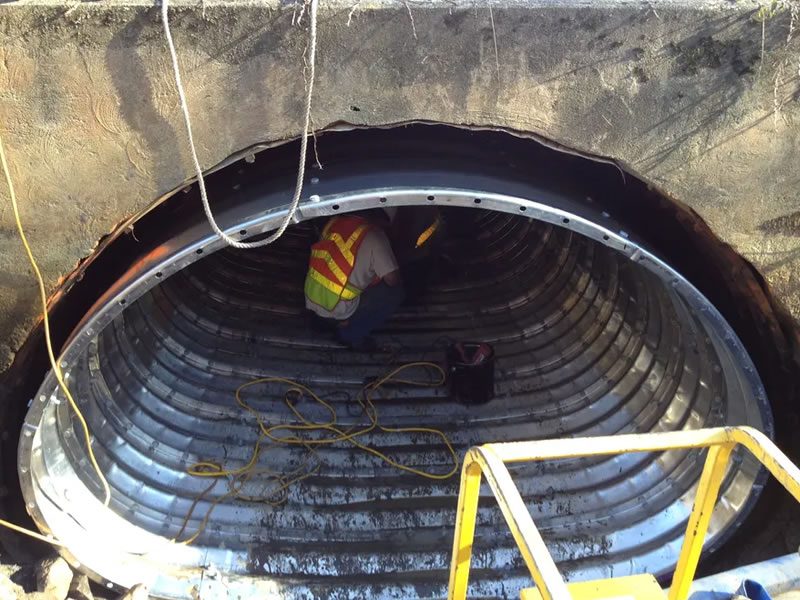

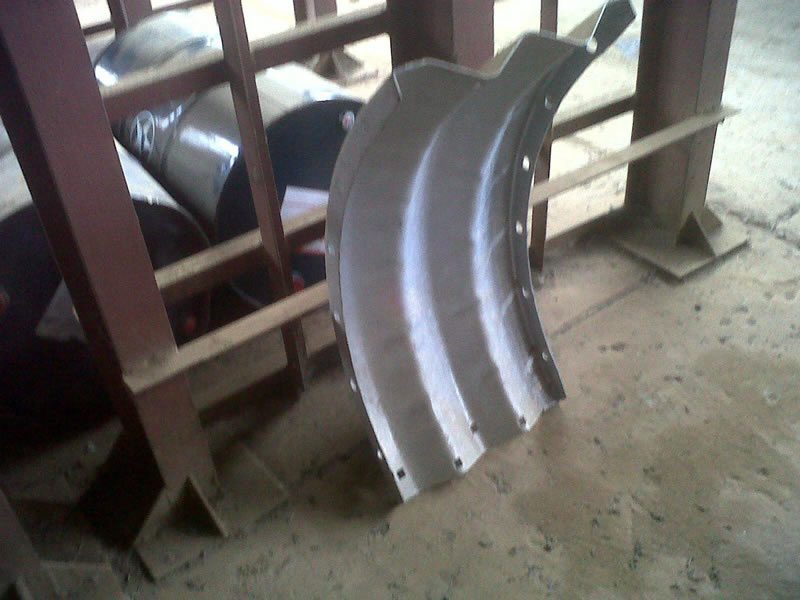

Corrugated Steel Tunnel Liner Plates are prefabricated, segmental steel plates designed to provide structural support and stability in tunnel construction and rehabilitation projects. Their corrugated design enhances strength and flexibility, making them suitable for various applications, including soft ground tunneling, relining existing conduits, and constructing vertical shafts.
Features:
- Lightweight and Modular: Individual plates are light enough to be carried by hand into confined spaces, facilitating easy assembly without the need for heavy machinery.
- Versatile Applications: Ideal for lining soft ground tunnels, relining existing conduits under highways and railroads, and constructing caissons, vertical shafts, and mine entries.
- Rapid Installation: The modular nature allows for quick assembly, reducing construction time and minimizing disruption to surrounding environments.
- Durability: Constructed from galvanized steel, these liners offer excellent corrosion resistance, ensuring long-term performance.
Applications:
- Transportation Tunnels: Highway, rail, and transit tunnels requiring structural support and durability.
- Utility Conduits: Housing pipelines, electrical cables, and other utilities beneath roads and railways.
- Shafts and Caissons: Construction of vertical shafts for access or ventilation in mining and civil engineering projects.
Benefits:
- Cost-Effective: Reduces the need for extensive excavation and complex lining equipment, lowering overall construction costs.
- Safety: Provides immediate support to excavated tunnels, enhancing safety during construction.
- Adaptability: Suitable for various tunnel shapes, including round, oval, and horseshoe configurations.
Selecting the appropriate corrugated steel tunnel liner depends on factors such as ground conditions, tunnel dimensions, and specific project requirements. Proper installation and maintenance are crucial to ensure the safety and longevity of the tunnel structure.
For more detailed information and technical specifications, consulting with manufacturers or engineering professionals specializing in tunnel construction is recommended.
